About this product
Compact, portable surface-mounted piezo for variety of acoustic instruments

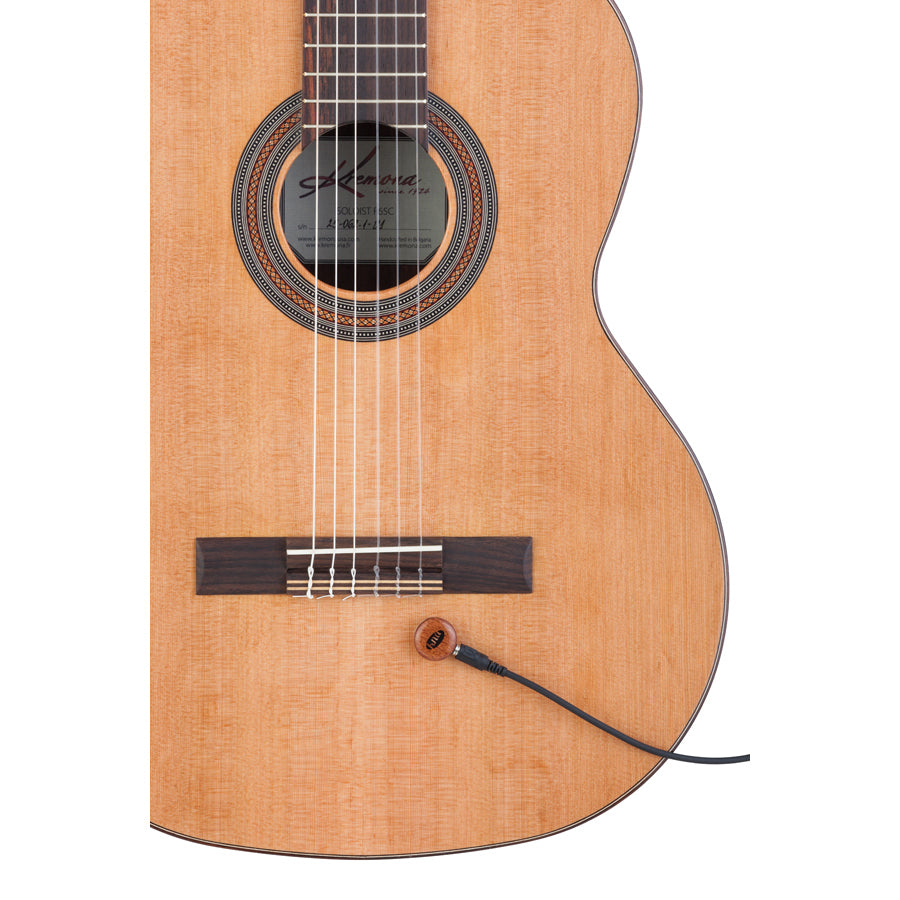

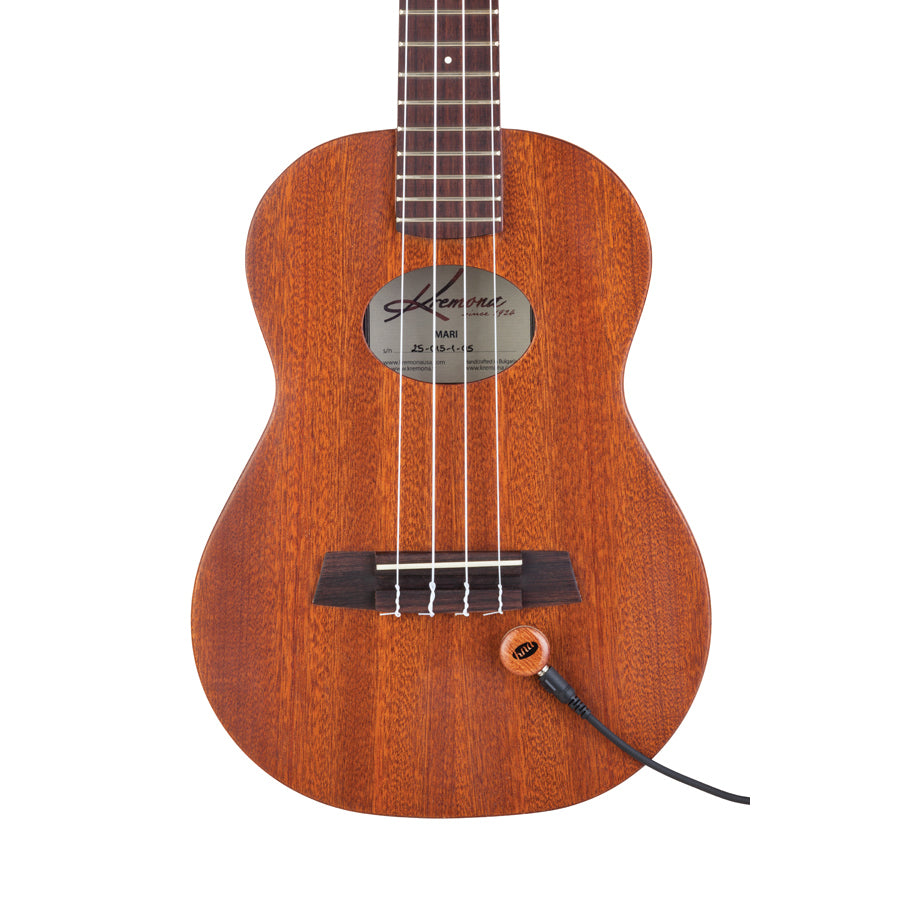

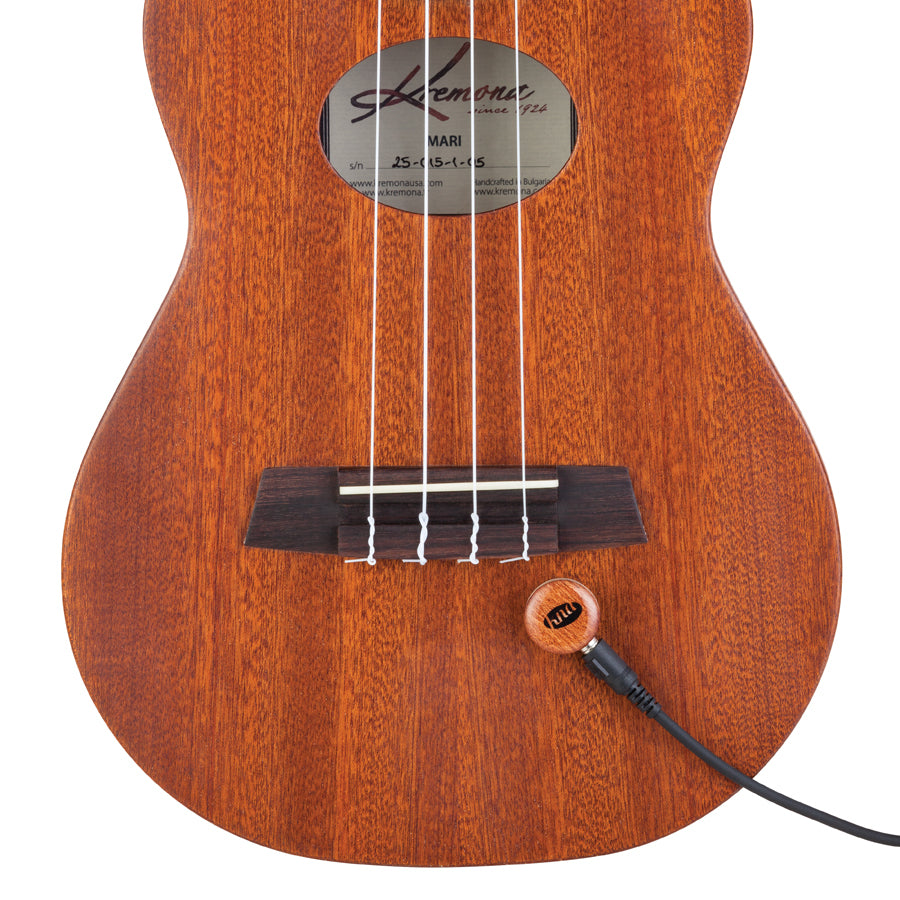

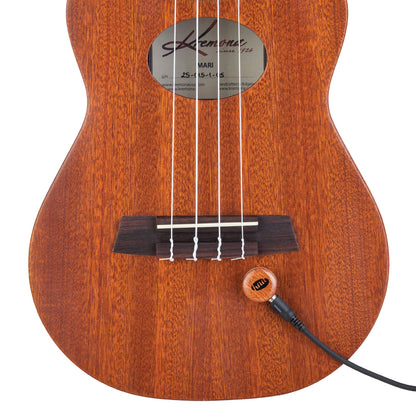

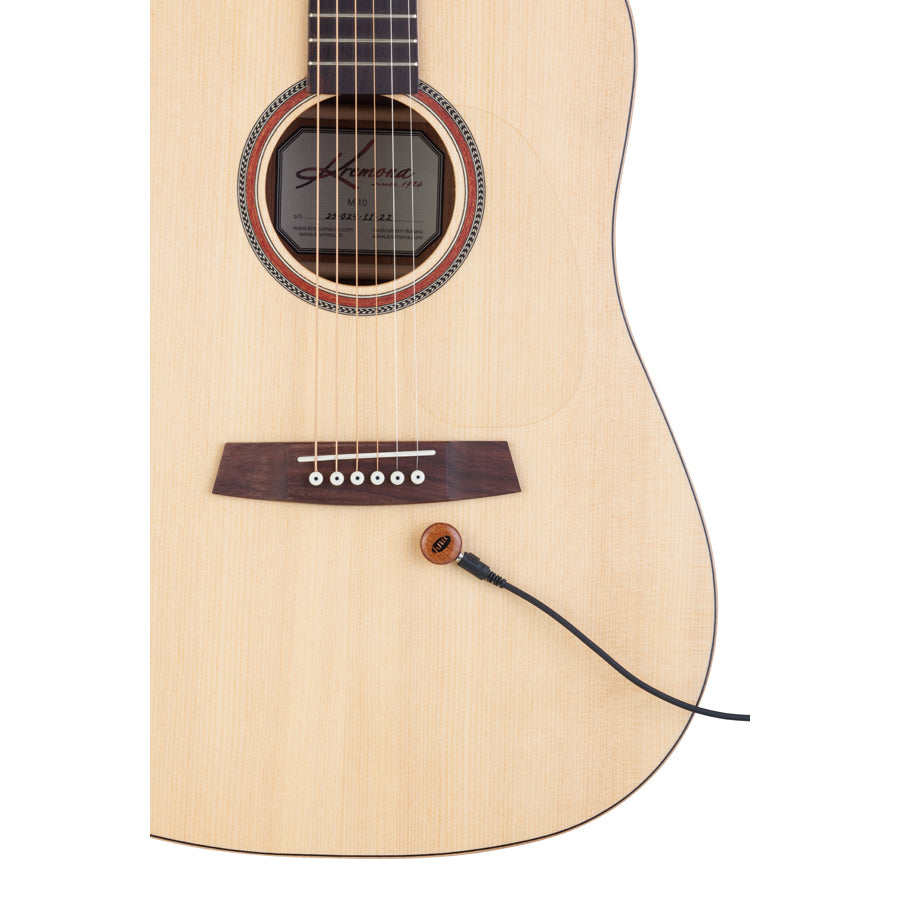

Our lightest and smallest stick-on guitar pickup, the versatile UP-1 passive piezo attaches safely to just about anything that vibrates.
In addition to being a surface-mount guitar pickup, UP-1 can be used for harp, drums, and percussion.
Features:
Install with no modification
Simply stick the pickup on your instrument’s soundboard.
Wooden housing
The piezo element is encased in laminated birch with an elegant and stylish mahogany top. The lightweight assembly offers maximum tonal sensitivity.
Natural sound
UP-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.
Complete installation set

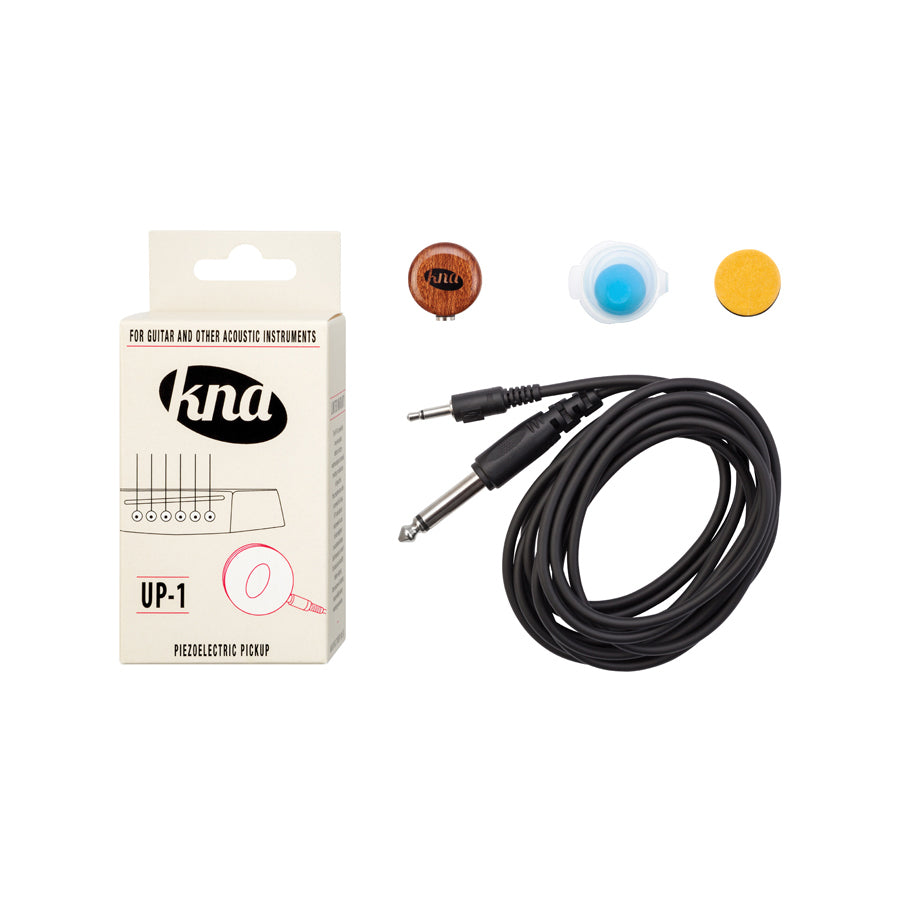

The pickup comes with a double-sided adhesive disc and enough PowerTack adhesive for multiple applications, and a detachable 1/8" to 1/4" cable that allows the pickup to remain in place during storage.
DOWNLOAD INSTALLATION INSTRUCTIONS HERE
| specifications | |
| Weight | 2.95g / 0.104oz |
| Diameter | 22.5mm / 0.88" |
| Height | 10.20mm / 0.40" |
| Body materials | Laminate birch and mahogany top |
| Potentiometer | 500 kilo ohms |
| Maximum Impedance | 800 ã_ |
| Cable | 2.5meter / 8' |
KNA UP-1 Universal Instrument Pickup
KNA UP-1 Universal Instrument Pickup
SKU:KNA-KNAUP1
- 14-day returns
- Secure checkout
- Mildura shop since 1987
Questions? Call the Mildura shop on 03 5023 3662.
